| Allmänt |

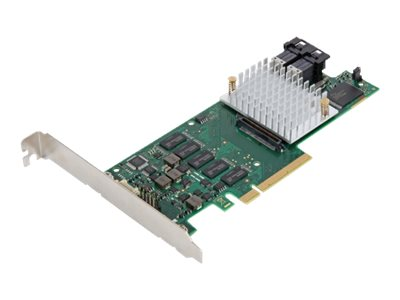

| Typ av enhet | Kontrollerkort (RAID) - instickskort |
| Värdbuss | PCIe 3.0 x8 |
| Kontrollerkort |
| Gränssnitt | SATA 6Gb/s / SAS 12Gb/s |
| Dataöverföringshastighet | 12 Gbit/s |
| Buffertstorlek | 1 GB |
| Enheter som stöds | Hårddisk, disk array (RAID), halvledarenhet |
| Antal kanaler | 8 |
| Max antal enheter | 240 |
| RAID-nivå | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Processor | LSI LSISAS3108 |
| Maximalt antal LUN | 64 |
| Expansion/Anslutning |
| Gränssnitt | 2 x SATA 6Gb/s / SAS 12Gb/s - 4x mini-SAS HD (SFF-8643) (intern) |
| Diverse |
| Egenskaper | Load Balancing, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), SCSI Enclosure Services (SES) |
| Kompatibilitetsinformation |
| Designat för | Fujitsu PRIMERGY CX2550 M4, CX2550 M4 liquid cooling, CX2550 M5, CX2560 M4 air cooling, CX2560 M4 liquid cooling, CX2560 M5, CX2570 M4 PCI air cooling, CX2570 M4 SXM2 liquid cooling, RX1330 M4, RX2520 M4, RX2520 M5, RX2530 M4, RX2530 M4 Liquid Cooling, RX2530 M5, RX2530 M5 Liquid Cooling, RX2540 M4, RX2540 M5, RX4770 M4, RX4770 M4 liquid cooling, RX4770 M4 Performance, TX1320 M4, TX1330 M4, TX2550 M4, TX2550 M5 |
|
